General overview

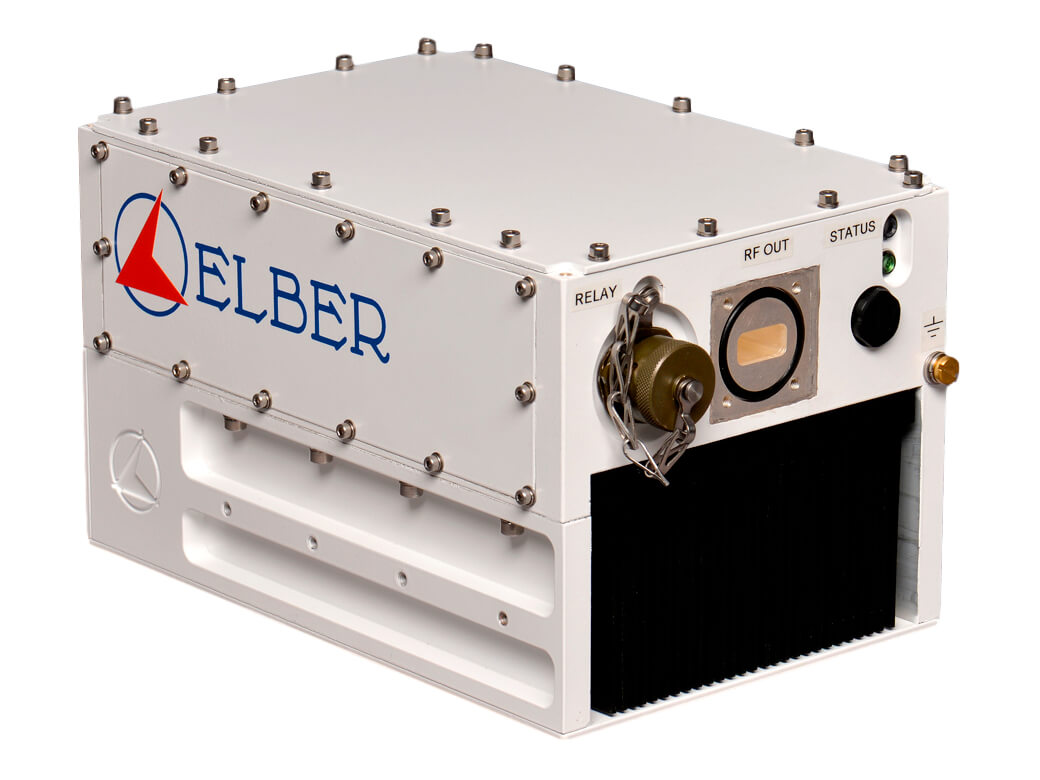

The ESSPx is the outdoor solid-state power amplifiers (SSPAs) series designed and manufactured by Elber with GaN transistor technology, with output power from 50W up to 200W.
Available also as SSPB with in-house designed upconverter,the ESSPA-Ku50 is the 50W Ku-band version.
The ESSPx is an integrated unit, comprehensive of power supply and cooling system, housed in a weatherproof cabinet for safe outdoor installation and operation.
Safe operation is preserved also through automatic software/hardware shutdown of final stages in case of overtemperature,over-current and high reflected power.
The amplifier is equipped with precise forward and reflected power detection circuitry for correct configuration and monitoring of the amplifier.
Management of the unit can be done either locally and remotely through serial RS-485/422 or Ethernet connection.
A redundancy kit is also available, with autonomous
management of 1:1 solution or optionally with external Master control unit, through Cleber platform (one control unit for 2 amplifiers).

Main features
  • SSPA and SSPB
  • GaN Technology
  • Output power 50 W (PSAT)
  • High Gain and Linearity
  • Fully Outdoor Use
  • Fully protected against over-temperature, overcurrent and high VSWR.
  • Gain adjustment
  • Output sample monitor port
  • Autonomous 1+1 redundancy management
  • Remote Monitor & Control through Serial and Ethernet ports
