L-Band Switch


Available download(s) (1) :

User Manual

[ ~ 2219.20 KB - MD5: ]

General overview

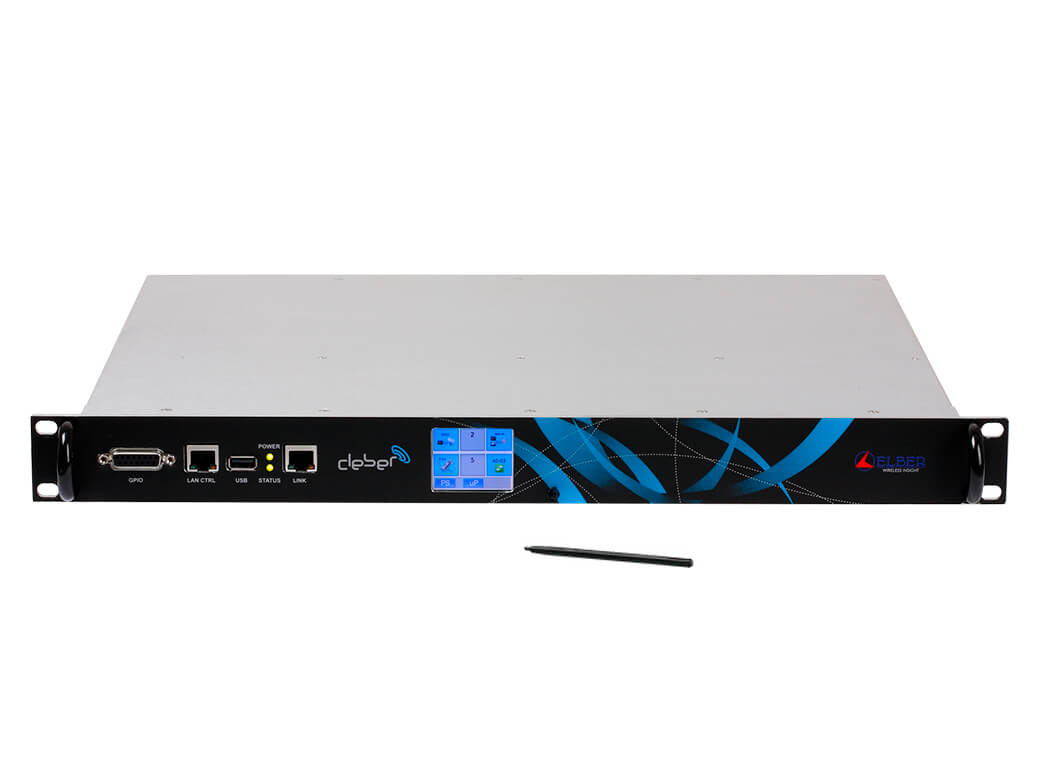

Cleber offers a powerful, flexible and modular hardware and software platform for broadcasting and contribution networks where customers can install up to six boards with no limitations in terms of position or number. Based on a Linux embedded OS, it detects the presence of the boards and shows the related control interface to the user, either through web GUI and Touchscreen TFT display. Power supply can be single (AC and/or DC) or dual (hot swappable for redundancy); customer may chose between two ranges for DC sources, that is 22-65 or 10-36 Vdc for site or DSNG applications.
For redundant satellite configurations, Cleber performs an advanced L-band switch (RFSW-03) that can be used with both Elber MS2 and third-part Modulator.

Main features
  • Self-contained compact solution (1U RACK 19”)
  • Six plug-in slots available for any combination of boards
  • TFT front panel control
  • Embedded Linux OS
  • AC and DC inputs
  • WEB interface, SNMP v2 and GPIO




  • DVB-S/S2 Modulator, Multistream, ASI inputs, L-band and IF output
  • DVB-S/S2 Receiver, Multistream, 4 ASI outputs, L-band input
